Pseudoatom

From PyMOLWiki
Jump to navigation Jump to search

pseudoatom creates a molecular object with a pseudoatom or adds a pseudoatom to a molecular object if the specified object already exists. Default position is in the middle of the viewing window.

USAGE

pseudoatom object [, selection [, name [, resn [, resi [, chain
        [, segi [, elem [, vdw [, hetatm [, b [, q [, color [, label
        [, pos [, state [, mode [, quiet ]]]]]]]]]]]]]]]]]

ARGUMENTS

  • object = string: name of object to create or modify
  • selection = string: optional atom selection. If given, calculate position (pos) as center of this selection (like center of mass without atom masses).
  • name, resn, resi, chain, segi, elem, vdw, hetatm, b, q = string: atom properties of pseutoatom
  • color = string: color of pseudoatom
  • label = string: place a text label and hide all other representations
  • pos = 3-element tuple of floats: location in space (only if no selection given)
  • state = integer: state to modify, 0 for current state, -1 for all states {default: 0}
  • mode = string: determines the vdw property if vdw is not given. Either as RMS distance (mode=rms, like radius of gyration without atom masses) or as maximum distance (mode=extent) from pseudoatom to selection {default: rms}
# create the pseudoatom
pseudoatom tmpPoint
 ObjMol: created tmpPoint/PSDO/P/PSD`1/PS1
# show it as a sphere.
show spheres, tmpPoint

# create another, with more options.
pseudoatom tmpPoint2, resi=40, chain=ZZ, b=40, color=tv_blue, pos=[-10, 0, 10]
 ObjMol: created tmpPoint2/PSDO/ZZ/PSD`40/PS1

EXAMPLES FOR USE

pseudoatom can be used for a wide variety of tasks where on must place an atom or a label in 3D space, e.g. as a placeholder for distance measurement or distance specifications.

# A pseudoatom as a placeholder for selections according to distance:
load $TUT/1hpv.pdb
pseudoatom tmp, pos=[10.0, 17.0, -3.0]
show sticks, tmp expand 6
delete tmp

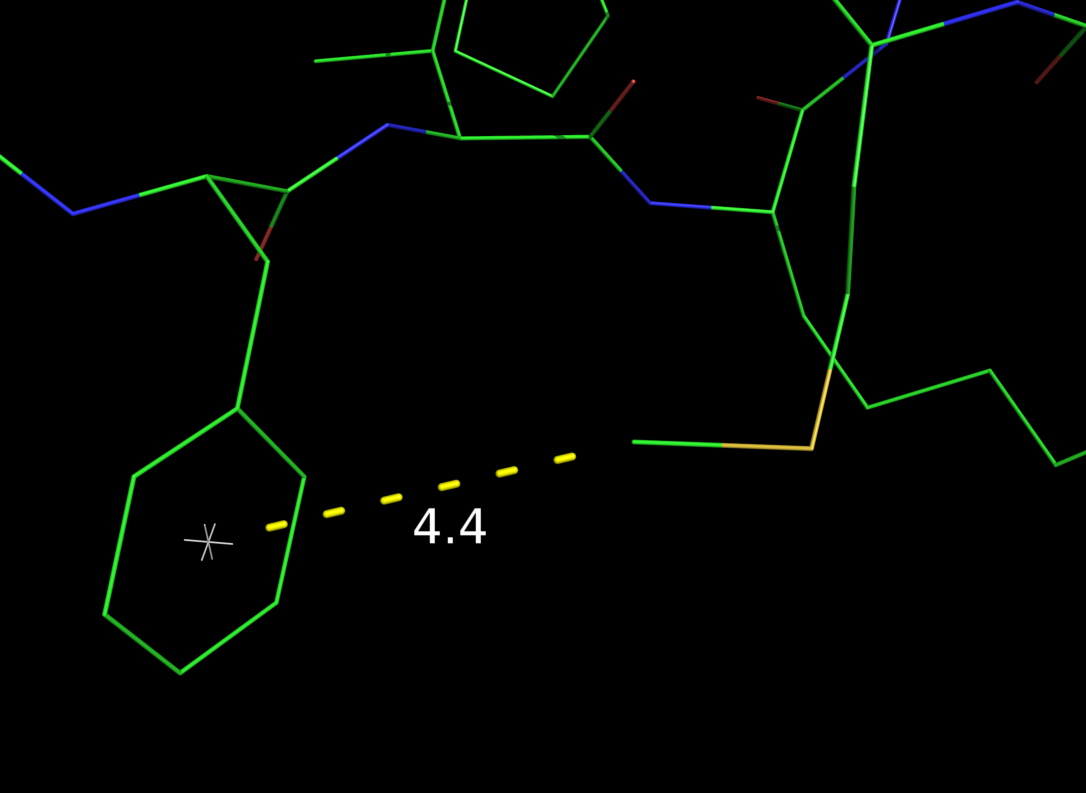

# A pseudoatom as placeholder for distance measurement:
# position it at the center of an aromatic ring.  Then
# calc the distance from another atom to the pseudoatom.
load $TUT/1hpv.pdb
pseudoatom pi_cent,b/53/cg+cz
dist pi_cent////ps1, b/met`46/ce

You can use a pseudoatom to make a label for a scene title. Move the protein to the bottom of the window before the pseudoatom is created. Or move the label after creating it (Shift + Middle mouse button in editing mode).

fetch 1rq5
pseudoatom forLabel
label forLabel, "This Protein is a Carbohydrate Active Enzyme"
set label_color, black
# png ray=1
