Type Python Script
Download displacementmap.py
Author(s) Troels E. Linnet
License BSD
This code has been put under version control in the project Pymol-script-repo

Contents

Overview

DisplacementMap is made for easy investigations of suitable positions for site-directed mutagenesis of amino residues into cysteines and FRET/EPR pair labelling.

A Open and Closed form of a protein should be loaded. New objects should be created for the selected asymmetric unit. Parts of the protein should be aligned, leaving the flexible part in two different positions.

The input is the objects, Open (molecule1) and Closed (molecule2).
Further is the criteria for selecting which atom the distance should be calculated between. Standard is atom='CA' (atom).
Then one selects the Förster distance R0 (mindist). This is the minimum distance between the residues. This depends of the selection of the FRET pair and protein at hand. But usually in the range 40 - 80 Angstrom is suitable.
Then one defines the minimum displacement that is accepted. Usually R0/2 (mindelta).
The script will find the 5 best (listlength=5) positive and negative distance displacement between the two objects.

It parses the results back to Pymol, that is standard set to show it as sticks (showsticks='yes').
If one is looking for a particular residue range for the FRET pair, this can be specified with two input. resi1=24.45-47.86 resi2=100-105.107 resi1 is "from" and resi2 is "to". Individual residues are split by a ".", and ranges are defined with "-".
In the end, it makes a large data-matrix with all the distances. It also produces a gnuplot file, for easy visualisation. Just drag the .plt file for win gnuplot command window and it plots your datamatrix.

Bugs

If the criterion is set to low, the memory gets flooded in the data-matrix file, making the file unreadable. No solutions found yet.

Example

dispmap(molecule1="NIL", molecule2="NIL", mindist=30.0, mindelta=15.0, resi1=str(0), resi2=str(0), atom='CA', listlength=5, showsticks='yes'):

Use of functions

import displacementmap
dispmap Open5NT, Closed5NT, 40.0, 15.0, resi1=206, resi2=1-512.515-550
dispmap Open5NT, Closed5NT, 30.0, 15.0, resi2=1-512.515-550, atom=CA, listlength=10

Output

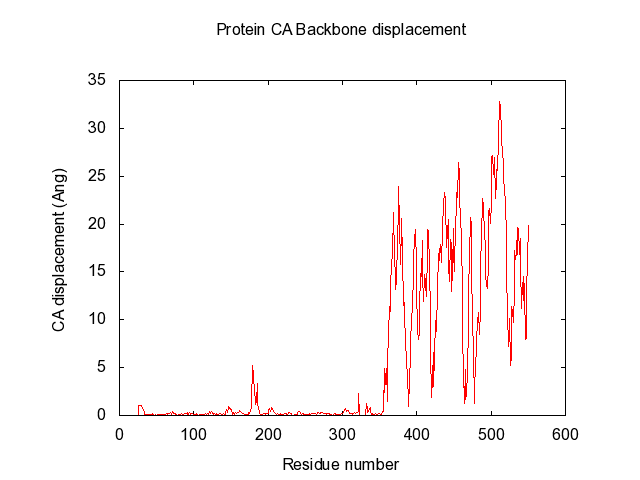

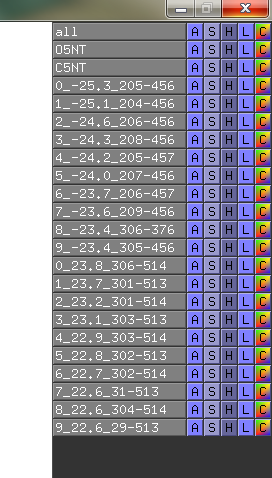

Suggestions are created in pymol, and gnuplot file is created for easy visualisation of pair data-matrix and the general backbone displacement.

Text output

In the data-matrix.txt file, you find the best suggestions

# Input 1: Open5NT  and Input 2: Closed5NT
# Find for: CA  with min. residue-residue dist: 30.0 Angstrom
# Looking for min. displacement dist: 15.0 Angstrom
# I give nr# suggestions: 5, and do I show sticks in pymol?: yes
# I look for suggestions in the range: ([0]=>means all residues)
# for Input 1: ['0'] and for Input 2: ['0']
# Mutation info is BLOSUM62 log-odds likelihood score and PAM250 is probability in % for evolutionary distance
###########################################################################################################
# Max Negative and positive distances                                       #       Mutation info         #
###########################################################################################################
# Obj.1   Obj.2   Delta   Op-Op Cl-Cl # Obj.1   Obj.2   Delta   Op-Op Cl-Cl # Res.1  Res.2 # Res.1  Res.2 #
# Res.1   Res.2   -Dist   Dist  Dist  # Res.1   Res.2   +Dist   Dist  Dist  # B62/PAM250%  # B62/PAM250%  #
###########################################################################################################
# PRO241  ASP456  -25.7   59.1   33.4 # PRO274  PRO513   26.8   31.2   58.0 # -3/ 2 -3/ 1  # -3/ 2 -3/ 2  #
# LYS197  ASP456  -25.6   57.3   31.7 # THR273  PRO513   26.1   31.6   57.7 # -1/ 1 -3/ 1  # -1/ 2 -3/ 2  #
# PRO513  ASP456  -25.4   32.4    7.0 # PRO274  GLY514   24.8   32.9   57.6 # -3/ 2 -3/ 1  # -3/ 2 -3/ 2  #
# LEU198  ASP456  -25.3   59.0   33.7 # PRO274  LYS512   24.7   30.3   55.0 # -1/ 1 -3/ 1  # -3/ 2 -1/ 1  #
# GLN201  ASP456  -25.2   62.8   37.6 # ASN311  PRO513   24.7   35.6   60.3 # -3/ 1 -3/ 1  # -3/ 1 -3/ 2  #

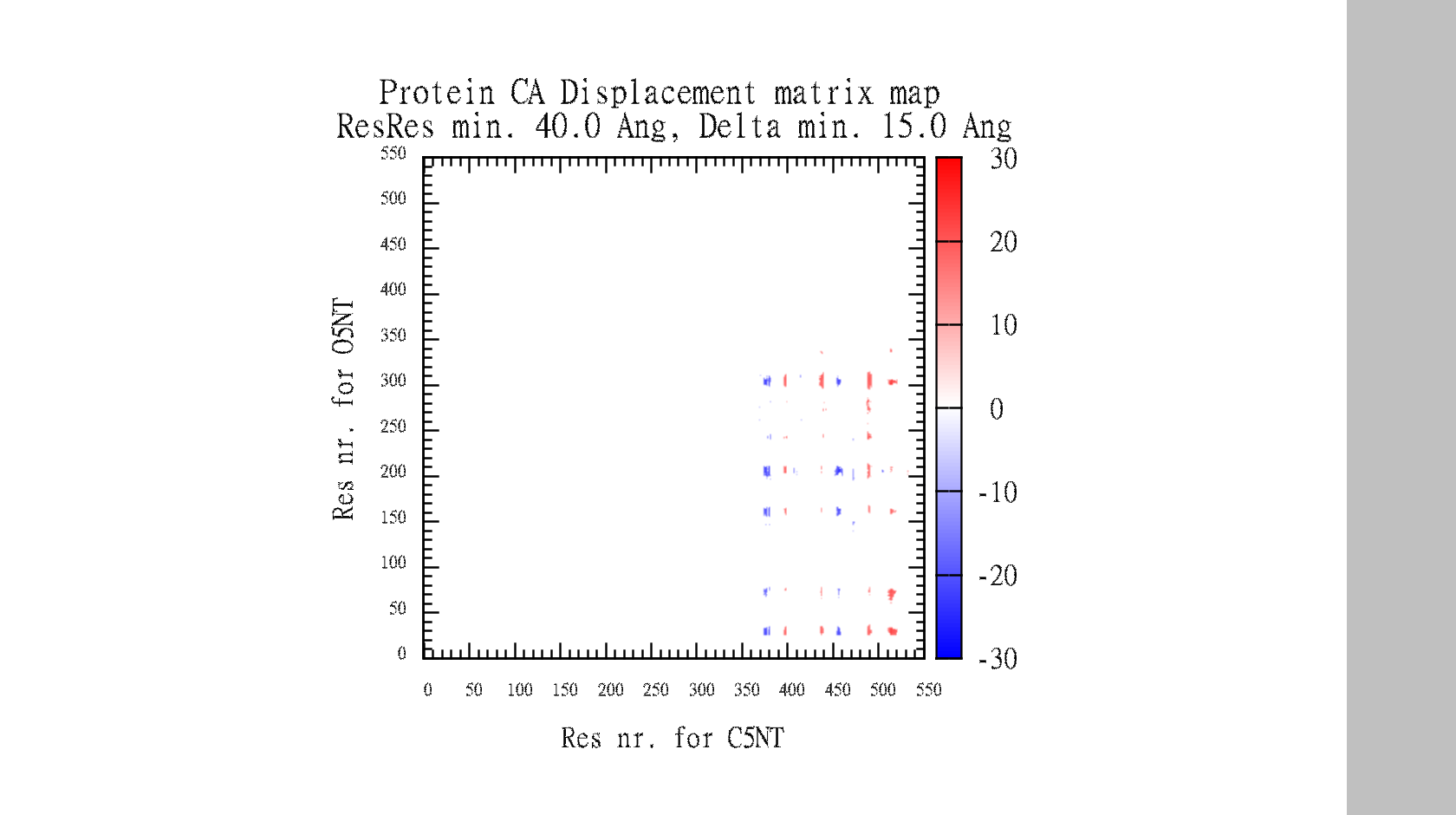

The script also automatically make the gnuplot plot file (.plt), with all the defined variables, for easy visualisation of the data-matrix.txt and the backbone displacement.

Example 1

Download: examples/displacementmap_1.pml
This code has been put under version control in the project Pymol-script-repo
reinitialize
import displacementmap

fetch 1HP1, async=0
fetch 1HPU, async=0

hide everything
### Select asymmetric units from pdb file
create O5NT, /1HP1//A
create C5NT, /1HPU//C
delete 1HP1
delete 1HPU

show cartoon, all
super O5NT and resi 26-355, C5NT and resi 26-355

### Color
set_color goldenrod1, [1.000, 0.757, 0.145]
color goldenrod1, resi 26-355
set_color darkolivegreen1, [0.792, 1.000, 0.439]
color darkolivegreen1, O5NT and resi 356-362
set_color darkolivegreen4, [0.431, 0.545, 0.239]
color darkolivegreen4, C5NT and resi 356-362
set_color chocolate3, [0.804, 0.400, 0.114]
color chocolate3, O5NT and resi 363-550
set_color purple4, [0.333, 0.102, 0.545]
color purple4, C5NT and resi 363-550

# Select active site
create active_site, resi 117+120+252+116+217+84+41+43+254
show sticks, active_site
disable active_site

# Make Cys-Cys bonds
create SS, (cys/ca+cb+sg) and byres (cys/sg and bound_to cys/sg)
show sticks, SS
color yellow, SS

# Mark water molecules
create waters, resn HOH
show nb_spheres, waters
color blue, waters
disable waters

### Make sharper, and transparent
set fog=0
set cartoon_transparency, 0.7

### Load the function
dispmap
#dispmap O5NT, C5NT, 40.0, 15.0, resi1=206, resi2=1-512.515-550
## Look for serine
#dispmap mindist=40.0, mindelta=15.0, resi1=206, resi2=330.347.350.405.412.419.457.467.533.534.539.548.336.367.383.397.439.448.490.495.501.518
#dispmap resi1=308, resi2=513
zoom O5NT


References

For EPR considerations
Conformation of T4 Lysozyme in Solution. Hinge-Bending Motion and the Substrate-Induced Conformational Transition Studied by Site-Directed Spin Labeling
Hassane S. Mchaourab, Kyoung Joon Oh, Celia J. Fang, and Wayne L. Hubbell
Biochemistry 1997, 36, 307-316

Probing Single-Molecule T4 Lysozyme Conformational Dynamics by Intramolecular Fluorescence Energy Transfer
Yu Chen, Dehong Hu, Erich R. Vorpagel, and H. Peter Lu
J. Phys. Chem. B 2003, 107, 7947-7956

For FRET pair selection and considerations
Fluorescent probes and bioconjugation chemistries for single-molecule fluorescence analysis of biomolecules
Achillefs N. Kapanidisa and Shimon Weiss
Journal of chemical physics VOLUME 117, Number 24 22 December 2002

For inspiration to DisplacementMap. Fig: 6, Difference-distance matrix for the difference in CA-CA distances.
Structure of a Hinge-bending Bacteriophage T4 Lysozyme Mutant, Ile3 -> Pro
M. M. Dixon, H. Nicholsont, L. Shewchuk W. A. Baase and B. W. Matthews1
J. Mol. Biol. (1992) 227. 917-933
